Product Center

FYOF oil film sectioning machine

  • Product Description

1. It is mainly a model developed for imported and domestic small core CNC lathes, which can easily transport round rods, hexagons, plastics and shaped materials with Φ1.4mm or more small materials.
2. Using pulse data control, accurate positioning, the cutting end of the first piece can be controlled within 0.2mm.
3. Adopt 40 point PLC plus servo motor, large touch screen, digital control, accurate positioning, convenient and simple.
4. The silo is made of high-temperature, wear-resistant and oil-resistant PU material, which makes no noise in material transmission and avoids scratches.
5. Using pneumatic control, divided into three sections to open the warehouse, for small bar material, effectively avoid material rushed out or stranded material.
6. Electrical and mechanical fault intelligent diagnosis, maintenance is simple and fast.
7. Material out or cutter damage, intelligent alarm and automatic shutdown, to ensure safety, and reduce energy and tool loss.
8. For different products, you can choose one opening clip and two opening clips, which can accurately control the refuelling in the same position.
9. According to customer order requirements, the processing quantity can be set to facilitate production management.
10. When the clip falls off or there is no material, the alarm is immediately reported and the machine is shut down, effectively preventing the stranding material and avoiding material and tool damage.
11. Material delivery is not in place or beyond, will immediately alarm and stop, strictly control the occurrence of defective products.

Item

FYOF-308

FYOF-310

Processing capacity range

Maximum diameter of material processed

φ8mm

φ10mm

Minimum diameter of material processing

φ1.4mm

φ2mm

Bar processing length

2550mm

Bunker activity range

φ9mm

φ11mm

synthesis

Material capacity

φ1.4mm*140pcs

φ8mm*25pcs

φ2mm*100pcs

φ10mm*20pcs

Maximum power

0.68KW

Maximum frequency

50HZ

Total machine weight

About 580KG

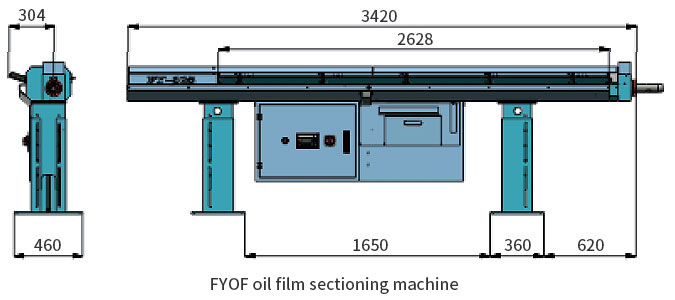

Overall dimension
